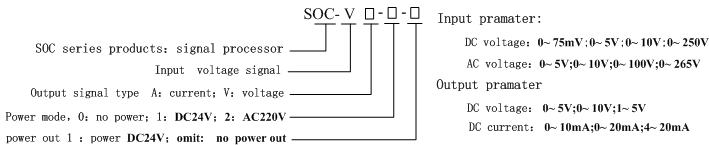

Model description:

when ordering ,please specify ：The voltage signal parameter of input and output.   example: SOC-VA-1(input:0-10V DC;output4-20mA )

Technology parameter:

    carrying capacity：≤750Ω

    consumption power：≤2W

     precision：0.1%

     Isolation pressure：1500VDC/分钟

     insulation resistance ：>100MΩ

     response time：200µS

     operating temp：-10℃~ 45℃

     operating humidity：<90%RH without dew

     power in：DC24V or AC220V

     installation method:35mm DIN Rail

     dimension (D*W*H) mm：：25×98×41   of power DC24V

                             25×79×88.4 of power AC220V

Wiring diagram:

Models:

    SOC-VA-1、SOC-VV-1、SOC-VA-2、SOC-VV-2
