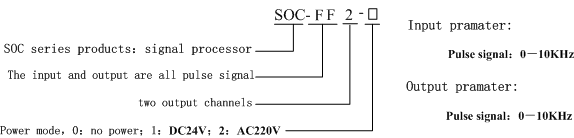

Model discription:

when ordering please specify ：the pulse signal parameter of input and output .

example: SOC-FF2-1(input:0~10Hz，output:0~10Hz)

Technology parameter:

       frequency distortion: <0.1%

       output amplitude zoom in :25%

       equivalent input impedance :30KΩ

       load equivalent impedance is required to be greater then 10KΩ

       power in：DC24V

       consumption power：≤1W

       installation method:35mm DIN Rail

       dimension (D*W*H) mm：：25×80×80

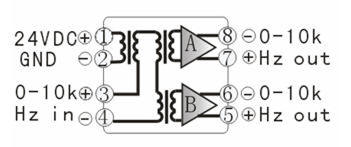

Wiring diagram:

Models:

        SOC-FF2-1

Product feature:

Isolation function

Distribution function

Transference function

High definition ±0.1%

High stability

Over-current protection

Over-voltage protection

RP-voltage protection

Free debugging
