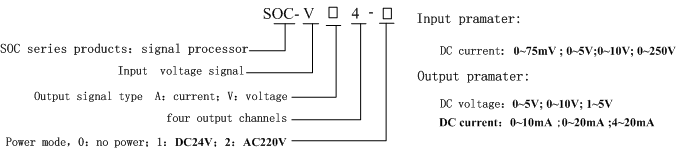

Model discription:
when ordering please specify ：the voltage signal parameter of
input and output. example:
SOC-VV4-1(input:0~
10v输入，output:0~
10V)
Technology
parameter:
input impedance
：≥100KΩ
output impedance ：voltage ：≥10KΩ；current：≤550Ω
carrying capacity：≤750Ω
consumption
power：≤2W
precision：0.1%
Isolation
pressure：1500VDC/分钟
insulation
resistance ：>100MΩ
response time：200µS
operating
temp：-10℃~
45℃
operating
humidity：<90%RH
without dew
power
in：DC24V
or
AC220V
installation
method:35mm DIN Rail
dimension
(D*W*H) mm：22.5×99×114.5
of power DC24V
Wiring diagram:
Models:
SOC-VA4-1、SOC-VV4-1
|
