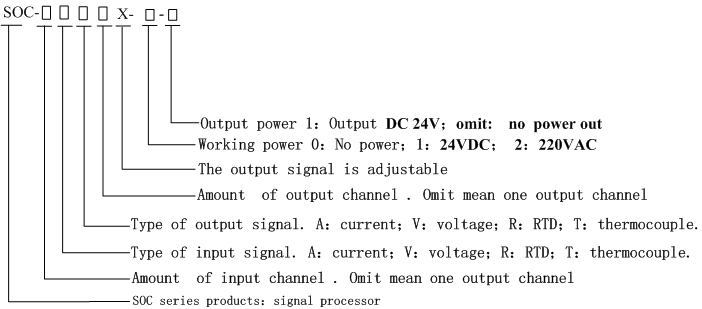

Selection table:
Parameter
specification:
A: DC current:0~
10mA,0~ 20mA,4~ 20mA
AC current:0~ 1A,0~5A, 0~10A
V: DC voltage:0~75mV,0~
5V,0~
10V,1~5V
AC voltage: 0~
5V,0~10V,0~100V
R: RTD
CU50(-20℃~100℃),CU100(0~100℃),PT100(0~150℃),
PT100(0~200℃),PT1000(0~400℃)
T:thermocouple:K/S/B
model。
temperature range:0~ 400℃,0~
600℃,0~ 800℃,0~
1000℃,0~ 1200℃,0~
1400℃,
0~ 1600℃。
Example:
SOC-AA2-1:Input
a current signal then output two current signals.power:DC24V.
Attention :When you select the products ,please tell us the
input and output signal type .For example 4~
20mA or 0~
20mA
|
